You have a 10x10 board made of tiles that are black on one side and light grey on the other, but right now they're all showing their grey side. Imagine the patterns you could make! For example, suppose you imposed a grid over the tiles to divide them into squares of the same size with no tiles left over. There are four grid sizes that would work: 1x1, 2x2, 5x5 and 10x10, as shown below (the tiles are in grey, the grids are shown with black lines).

Now imagine that each grid is a checkerboard where the top left square is a black square, like this:

Now imagine flipping over all the tiles that are underneath black grid squares. Do the 1x1 grid first, then 2x2, then 5x5, then 10x10. You're going to get some cool patterns. The pictures below show the results.

DATA21.txt (DATA22.txt for the second try) will contain 10 test cases. Each test case consists of six lines. The first line contains a single integer N (1 ≤ N ≤ 1000000) representing the size of the board. The next 5 lines each contain two integers R and C, separated by a space. R and C represent the row and column of a tile on the board (1 ≤ R,C ≤ N). Rows are numbered top down starting at 1 and columns are numbered left to right starting at 1. Your job is to simulate the pattern-making process described above for an NxN board, and then output a single line of 5 characters representing the five tiles in the locations given in the test case, in the order they originally appeared in the file. Each tile should be represented by an uppercase B or G depending on whether it is showing its black or grey side in the final pattern. Note that there are 2 test cases in the sample data below, but the real data files will contain 10 test cases.

Sample Input |
5 5 | 10 10 |

10 | 12 | |

5 1 | 6 6 | Sample Output |

5 2 | 7 7 | GBBGG |

5 3 | 8 8 | GGGGG |

5 4 | 9 9 |

import java.util.ArrayList; import java.util.Scanner; import java.io.File; public class Problem_2_Black_And_Grey { public static void main(String[] args) { try { Scanner file = new Scanner(new File("C:\\Users\\Mike\\Desktop\\problem_2_black_and_grey_DATA21.txt")); while(file.hasNextLine()) { ArrayList<String> dataSet = new ArrayList<String>(); // ArrayList that represents the current data set for the board // for the next 6 lines in the file (current data set for the board) for (int l = 0; l < 6; l++) { dataSet.add(file.nextLine()); } // get the size of the board and then remove it from the data set (it's unneeded after recorded) int n = Integer.parseInt(dataSet.get(0)); dataSet.remove(0); // find largest row and column in any of the six tiles int maxRow = 0, maxCol = 0; for (String s : dataSet) { String[] rowAndCol = s.split("\\s+"); // split by whitespace. array has two elements: row and column int row = Integer.parseInt(rowAndCol[0]); int col = Integer.parseInt(rowAndCol[1]); // if this row is larger than the previous largest row, this row is the new largest row if (row > maxRow) maxRow = row; if (col > maxCol) maxCol = col; } // board and transformed board matrices: are used to perform transformations throughout the stages // the dimensions are reduced to the maximum row and column values. the board won't need to be any // larger than that because no tiles on the board outside of this range will be tested (calculated above) int[][] board = new int[maxRow][maxCol], transformed = new int[maxRow][maxCol]; ArrayList<Integer> factors = getFactors(n); // factors of the board dimensions (not reduced board) for (int factor : factors) { // for every factor int gridDimensions = n / factor; // the square dimensions of the grids inside the larger board int numberOfGrids = factor; // the number of grids per side inside the larger board // make the checkerboards for each factor for (int i = 0; i < numberOfGrids; i++) { // for every grid in each row for (int j = 0; j < numberOfGrids; j++) { // for every grid in each column // colour each grid going row by row // i and j increment each grid // k and l increment each tile in each grid // start at the beginning of a grid (i * gridDimensions) and go until the end of the grid is reached (i * gridDimensions + gridDimensions) // the + gridDimensions would mean that it's iterating over a new grid // k < maxRow just makes sure that it's iterating within the reduced board array for (int k = i * gridDimensions; k < i * gridDimensions + gridDimensions && k < maxRow; k++) { for (int l = j * gridDimensions; l < j * gridDimensions + gridDimensions && l < maxCol; l++) { // if one of the row and column is even and one is odd, the grid is grey (if the checkerboard has the top left grid being black) if ( (i+j)%2 == 1) { board[k][l] = 0; // grey tile } else { board[k][l] = 1; // black tile } } } } } // add matrices (board matrix, which is the factored checkerboard, and transformed matrix, which is the last transformed board by adding, but will become the new transformed board) // I call it adding the matrices, but it's really just putting them together and getting the resultant matrix for (int i = 0; i < maxRow; i++) { for (int j = 0; j < maxCol; j++) { // this is like an XOR operation: if either one is black, but not both, the result is black; otherwise (both the same), the result is grey. if (transformed[i][j] == board[i][j]) { // if both tiles are the same colour transformed[i][j] = 0; // turns grey } else { // different colours transformed[i][j] = 1; // turns black } /* Another way of doing is using the actual XOR operator: if ((transformed[i][j] ^ board[i][j]) == 1) { // use XOR operator to test if the tiles are not the same colour (one of them is black, but not both; or the same thing with grey) transformed[i][j] = 1; // turns black } else { // same colour; failed the XOR test transformed[i][j] = 0; // turns grey }*/ } } } for (int i = 0; i < dataSet.size(); i++) { // for every tile to be looked at in the data set int row = Integer.parseInt(dataSet.get(i).split("\\s+")[0]); // split the row and column string for the tile by whitespace and the first element will be the row int col = Integer.parseInt(dataSet.get(i).split("\\s+")[1]); // second element is the column // find the tiles that the data set requests to be looked at // and remember to subtract 1 from the array index because arrays start indexing at 0, but the data set starts at 1 if (transformed[row-1][col-1] == 0) { System.out.print("G"); // grey } else { System.out.print("B"); // black } } System.out.println(); } } catch (Exception e) { e.printStackTrace(); } } /* returns the factors (as an ArrayList of integers) of the parameter n and this needs to return the list in descending order, hence the direction of the loops */ public static ArrayList<Integer> getFactors(int n) { ArrayList<Integer> factors = new ArrayList<Integer>(); // ArrayList of factors to be returned for (int i = n; i >= Math.sqrt(n); i--) { // only test up to the square root of the number because that will contain exactly half of the factors, excluding the square root (increases speed) if (n % i == 0) factors.add(i); // if the looping variable is a factor of the number, add it to the factors list } int size = factors.size(); // size of the factors // add the other half of the factors of the number for (int i = size - 1; i >= 0; i--) { // for every factor in the factors list if (factors.get(i) != Math.sqrt(n)) { // only add the corresponding factor if the factor is not the square root of the number (the corresponding factor is itself - a duplicate) factors.add(n / factors.get(i)); // add the corresponding factor (the number divided by this factor) to the list } } return factors; } }

DOWNLOAD as .java
## My test cases (as .txt files):

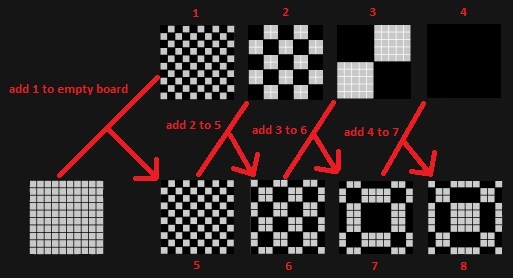

Here is the visual representation of the algorithm for the transformation stages:

Using their sample input:

10 5 1 5 2 5 3 5 4 5 5 12 6 6 7 7 8 8 9 9 10 10

And the output to that is:

GBBGG GGGGGDOWNLOAD as .txt

And that is exactly the expected output.

Using their first judging test input:

1 1 1 1 1 1 1 1 1 1 1 5 4 1 5 1 1 3 4 3 4 5 27 14 1 24 22 15 8 13 22 4 20 319 307 214 234 311 137 19 267 154 240 109 1538 783 351 1506 1197 477 439 1325 842 784 418 13711 2348 7747 5816 1804 10205 2840 10332 12335 1277 2310 34214 25681 30923 32867 2906 18070 18771 9621 21171 33276 19876 614576 173191 304281 117755 193532 85644 136805 247497 148351 315064 276058 410114 3527 330138 69103 115910 251323 359304 328877 71422 409274 89398 587138 183328 314509 437196 203282 169760 324622 131740 301442 352404 158612

And the output to that is:

BBBBB BGGBB GGGBB GGBGG BBBBG BGBBB Exception in thread "main" java.lang.OutOfMemoryError: Java heap space at Problem_2_Black_And_Grey.main(Problem_2_Black_And_Grey.java:41)DOWNLOAD as .txt

The only six outputs that it gives are exactly correct. The reason for the error is explained in my raw solution for this problem. My attempted solution to optimize the code (by reducing the size of the board to only what will be asked for) did not work because the board is still too large. I also tried rewriting the solution in Python, but didn't get different results.

Using their second judging test input:

5 3 3 1 5 1 1 5 5 5 1 41 35 14 3 38 8 41 23 4 22 40 82 47 37 45 34 36 68 20 26 68 67 1445 101 370 101 430 431 255 1126 654 687 1160 6702 4809 523 4257 5094 6414 1986 5624 4159 6673 39 9594 1683 3751 8567 7491 8723 8739 1137 5924 231 8237 279066 76150 149858 5431 157348 275668 30742 187266 148885 197615 236474 789635 120147 481547 327898 252985 477382 285895 595923 103869 154417 62088 337263 22311 96668 30460 131774 109613 15105 128666 259127 90148 138195 778168 132111 466313 765166 582561 182188 650557 96282 765697 482808 675730

And the output to that is:

GGGGG BBBBG GGBBB GBBGG GBBGB GGBGG Exception in thread "main" java.lang.OutOfMemoryError: Java heap space at Problem_2_Black_And_Grey.main(Problem_2_Black_And_Grey.java:41)

Similar to the first judging test input, the only six outputs are exactly correct. I can assume the rest would be correct with our algorithm, if only the memory would allow for the testing.

DOWNLOAD as .txt
Created: July 5, 2014

Completed in full by: Michael Yaworski
